High Quality Nano Sand Mill with CE, Double Seal Dynamic Nano Grinding Machine, All Ceramic Lab Horizontal Mill Suppliers in China

Home > Products > All Ceramic > Ceramic double seal dynamic sand mill

Ceramic double seal dynamic sand mill

Ceramic double seal dynamic sand mill

    Unit Price: 600~1468 USD
    Min. Order: 1 Set/Sets
    Packaging: Wooden case
    Productivity: 3 - 20 Kg/h
    Brand: Chile
    Transportation: Ocean,Air,Express
    Place of Origin: China,JiangSu,ChangZhou.
    Supply Ability: 20 sets per month
    Certificate: CE,ISO9001
    HS Code: 8479820090
    Port: Shanghai

Basic Info

Model No.: CSN-S-0.5L

Product Description

Product Overview

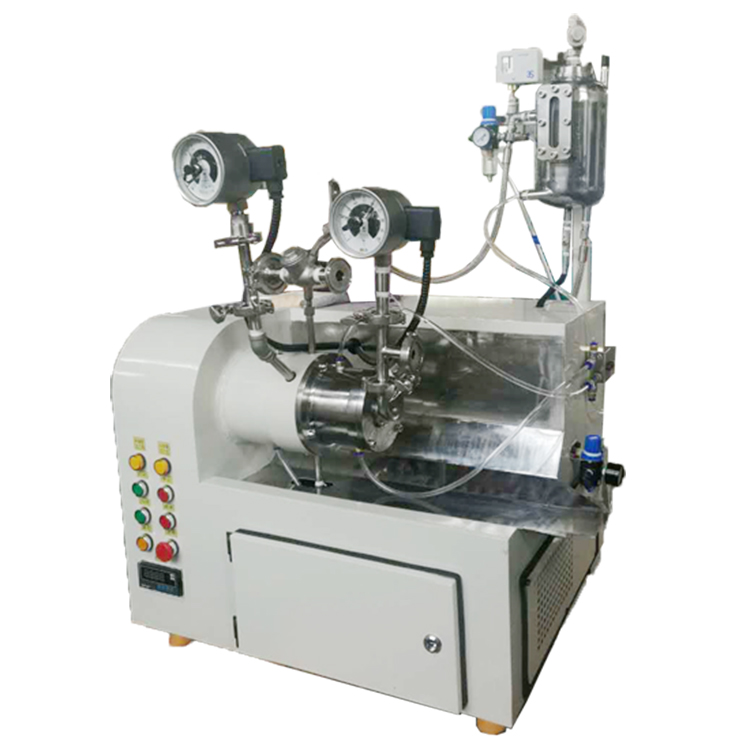

Ceramic double seal dynamic sand mill

Best selling Shanghai Chile nano bead mill, nano sand mill with CE

Horizontal bead mill paint grinding mill Ink milling machine pesticide sand mill pigment making machine;CHILE nano size lithium battery slurry horizontal bead mill Nano grinding mill nano sand mill nano bead mill machine;Paint bead mill Horizontal Sand Mill Grinding Machine;Horizontal bead mill sand grinding mill car paint grinding mill;Horizontal Bead Mill for Ink pigment; high technology ceramic bead mill,horizontal sand mill;Paint bead mill Horizontal Sand Mill Grinding Machine;Super quality Horizontal Bead Mill hot-sale sand mill cosmetic;Horizontal Bead Mill/Sand Mill/Nano grinding machine;

The CSN-0.5L Laboratory Nano Sanding Machine uses a closed structure to grind and disperse solid particles in liquids.Suitable for intermittent cycle grinding operation.Products by diaphragm pump from the material tank into the sander.The equipment has the characteristics of high uniformity of grinding and dispersing and low energy consumption.Simple cleaning, can be small batch production, do not need the feed pump, the material tank is located above the grinding cylinder, short connection pipeline.The material is stainless steel, which can grind the product to the nano meter range.

FEATURES AT A GLANCE
1.Good Repeatability
2.Circulatory grinding system
4.Frequency conversion speed is adjustable
5.Easy cleaning
PRODUCT SPECIFICATIONS
No
Item
Data
1
Model
CSN-0.5L ceramic
2
Grinding thank volume(L)
0.5
3
Speed(rpm)
300-2500
4
Motor power(kw)
4
5
Capacity(kg/h)
3-20
6
Length(mm)
1250
7
Width(mm)
950
8
Height(mm)
1750
9
Weight(kg)
620
10
Beads size
0.1-0.2
Why Choose Us
FAQ
Q: Can you give us a quotation right now?
A: Yes,will provide you soon.
Q: Can you give us your price list?
A: Yes,we will show you the details of price list.
Q: What is your MOQ?
A: 1 piece/set.
Q: Do you have any one in stock?
A:Sorry, we don’t. Our products are all manufactured according to customers’ requirements. So our products are all different and special.
Q: Do you accept a special order?
A: Yes, we do. We can manufacture all kinds of chemical equipment according to your technical drawings. Before you give them to us, will sign the contract and confidentiality agreement with you. You don’t need to worry about that. Or we can make a design for you according to your requirements. What we supply is not only product, but also solution and design.
Q: Can you give us the technical drawing and data?
A: We will give you the overall dimension drawing for your plan and project. But the detailed drawing and data will be sent you after we signed the contract and confidentiality agreement.
Q: Do you provide after-sales service?
A: Yes, we do. Our product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
Q: Can your engineer come to our place for installation guide?
A: Yes, we can. We will provide a video and document for installation. If you still have problem, we will send our engineer oversea for installation guide.
Contact us
Pls contact us if you want to know more details.
We would like to introduce our company and products, hope that we may build business cooperation in the future.

Chile(Shanghai) Mechanical Technology Co.,Ltd

 Chile(Shanghai) Mechanical Technology Co.,Ltd is a company focusing on the wet grinding, dispersing, emulsifying, mixing and non-standard equipment with comprehensive research, design, production, sales and service. Relying on science and technology for development, we continue to provide high-tech energy saving and environmental protection products satisfactory to the user which is our constant pursuit. On the base of the introduction of foreign advanced technology, our company has successfully developed high-speed disperser, mill, nano beads mill, high shear emulsifying machine, emulsion pump, mixer, mixing machine crusher, filtration equipmentpackaging equipment and various chemical complete sets of production line and other products. Our machines have been widely used in coatingprinting, cosmetic, medicine, daily cosmetic, food, inks, putty, mortar, resin, pigments, additives, adhesives, building materils, feed, metallurgy pesticidedetergent, washing powder, modified asphalt emulsion, paper and paper chemicals, Rubbel additives Pharmaceutical intermediatesbiological and chemical, lubricants, lithium battery slurry, wate treatment, dyeing and textile auxiliaries etc.
